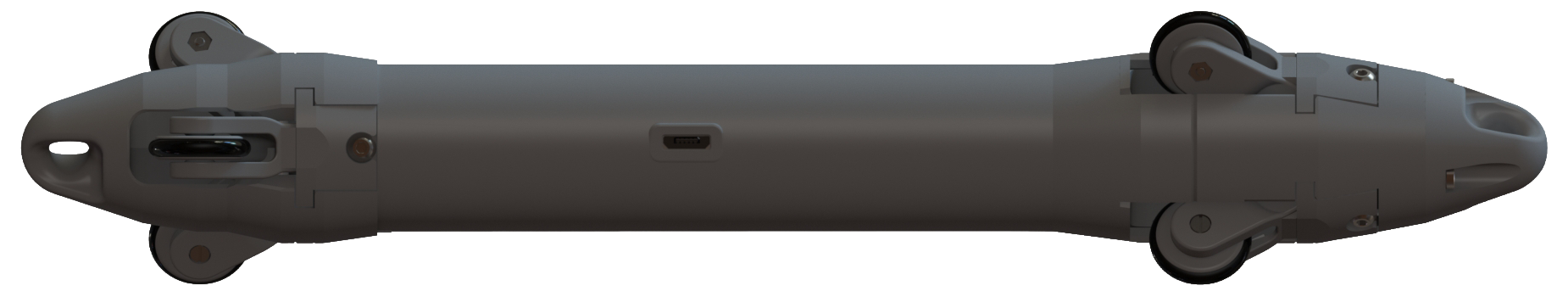

PLUM™ 1.5

MAP ACCURATELY AND QUICKLY

Dimension: Fits in a 1.50" pipe

The PLUM™ 1.5 and proprietary software allows for the creation of three-dimensional maps of underground systems and captures the X, Y, and Z coordinates.

The newly developed PLUM™ 1.5 utilizes secure cloud software that provides real-time data processing, automatic report generation, and archives of all related data. Our sensors and proprietary software are integrated into a platform that generates a report detailing the X, Y, and Z coordinates and potential bend radius issues, and provides source data that is communicated to the GIS platforms.

THE PROCESS

Setup is simple. The PLUM™ is designed by field engineers for operators in the field. The PLUM™ 1.5 can be either blown through a pipe or conduit or connected to pull tape that is then connected to a winch operated by a field technician. The device delivers real-time on-site data and measurements of the desired pipe or conduit. Data is anchored to GPS endpoints via a GPS device. Data is then transmitted from the device to a secure cloud platform. Proprietary data is protected with encryption at every step of the process.

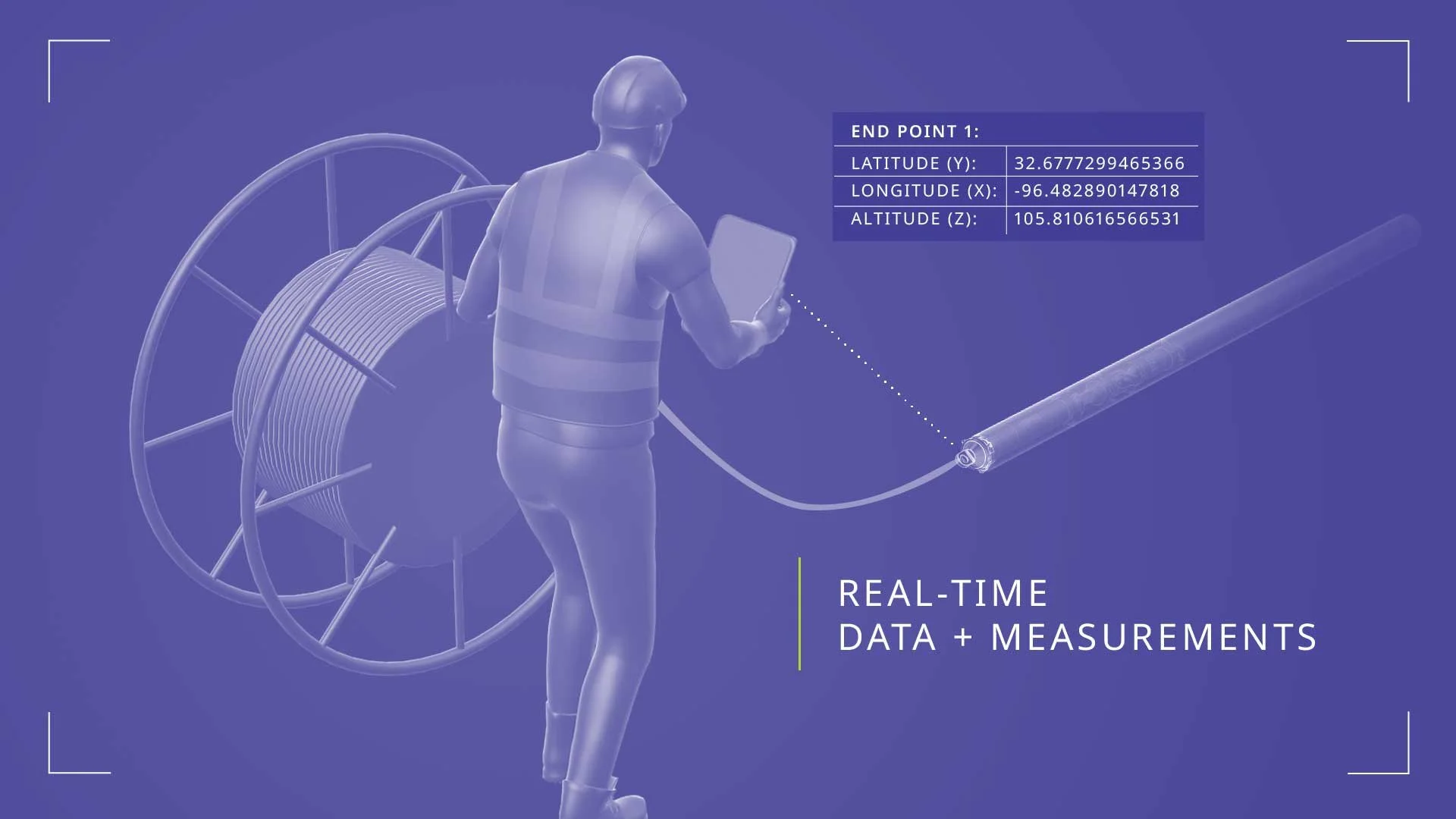

Illustration of a worker in a hard hat and safety vest holding a tablet, with parts of a cable reel and a cable, overlaid with real-time data including latitude, longitude, and altitude, and the text 'REED-TIME DATA + MEASUREMENTS'.

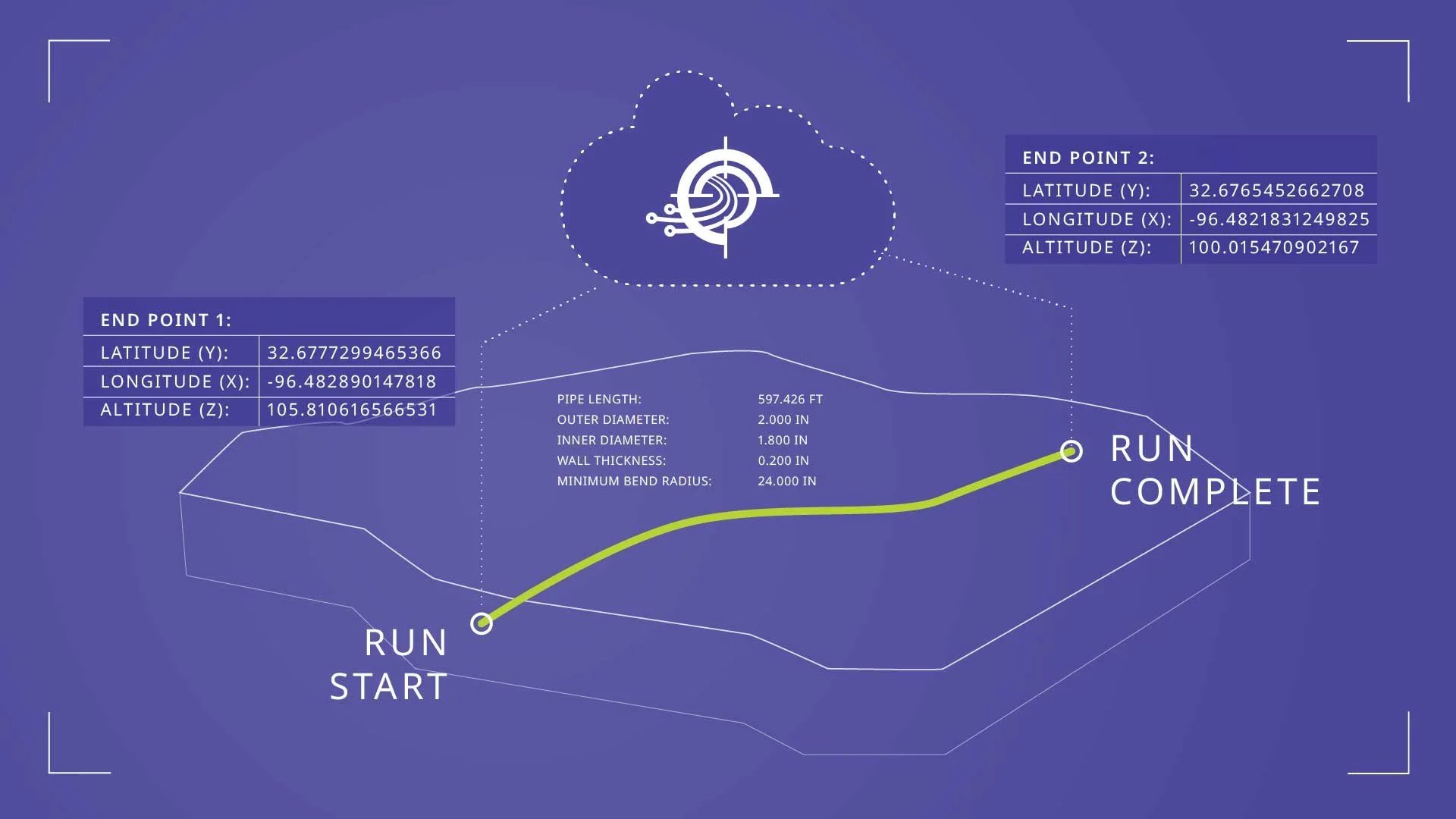

Digital depiction of a drone flight path with start and end points, location coordinates, altitude, and drone specifications, set against a blue background with a cloud icon in the center.

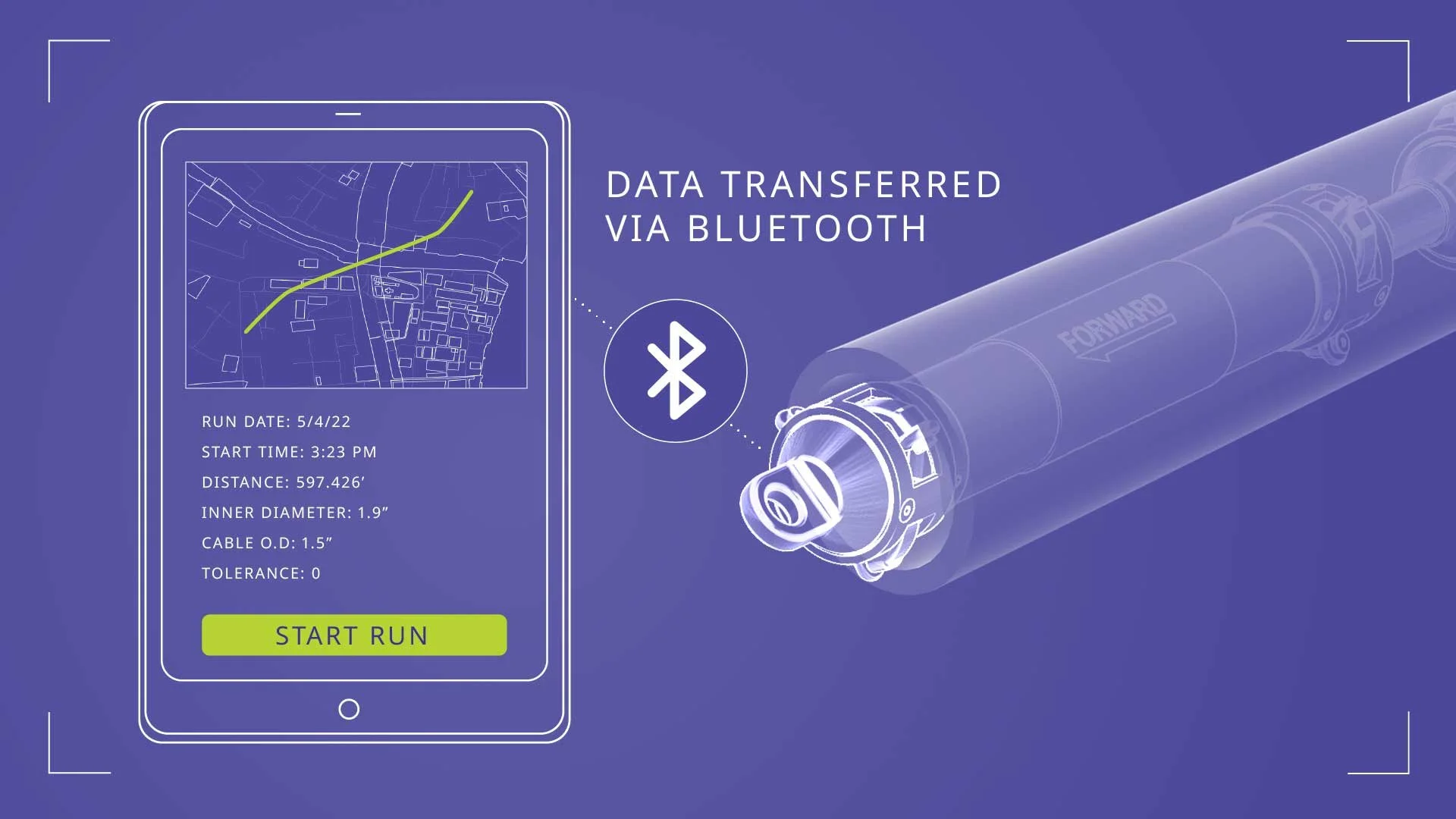

Diagram showing data transfer via Bluetooth from a mobile device to a cylindrical device, with details about a run including date, start time, distance, inner diameter, cable outer diameter, and tolerance, and a 'Start Run' button.

Text overlay within a box that reads: 'Provides survey-grade accuracy' on a white background with a border.

TECHNICAL CAPABILITIES

Text overlay within a box that reads: 'Data can be collected over a single-pass through system'.

Text overlay within a box that talks about: high output port and wireless technology for quick cloud uploading.

Text overlay within a box that reads: 'Data output cabability: CSV, KML, JSON, and SHP files' in black text on a light background with a border.

Text overlay within a box that reads: 'Device can withstand high pressure, water, and other elements'. The text is distorted with horizontal lines and glitch effects.

SHIPPED IN A CASE THAT INCLUDES:

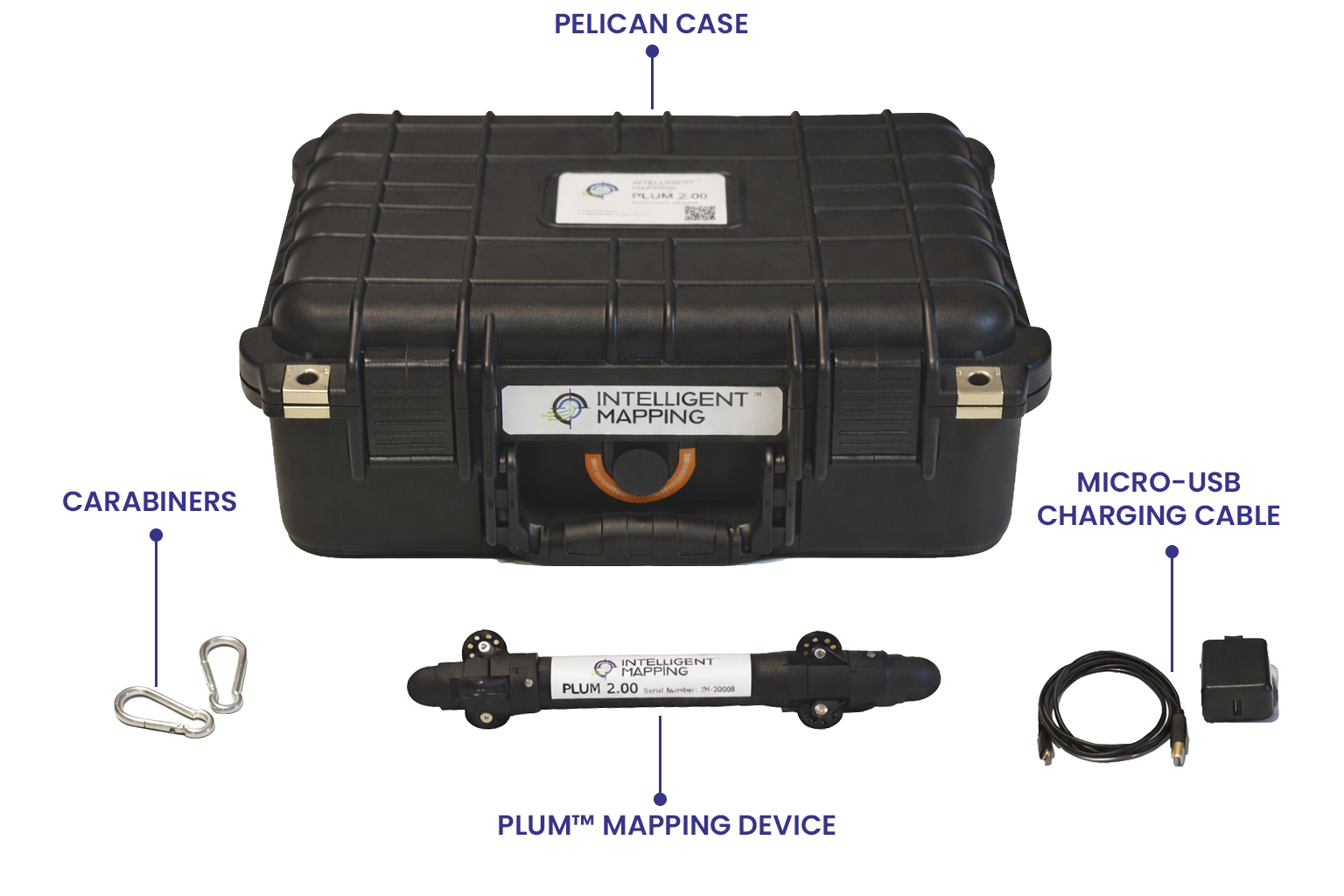

A black Pelican case with a label inside the lid, labeled 'Intelligent Mapping.' Below the case are the carabiners, Plum™ mapping device, and micro-USB charging cable with a power adapter. The carabiners are silver with a spring mechanism, the Plum™ mapping device is a black cylindrical device with a white label, and the charging cable is black with a small black power block.
