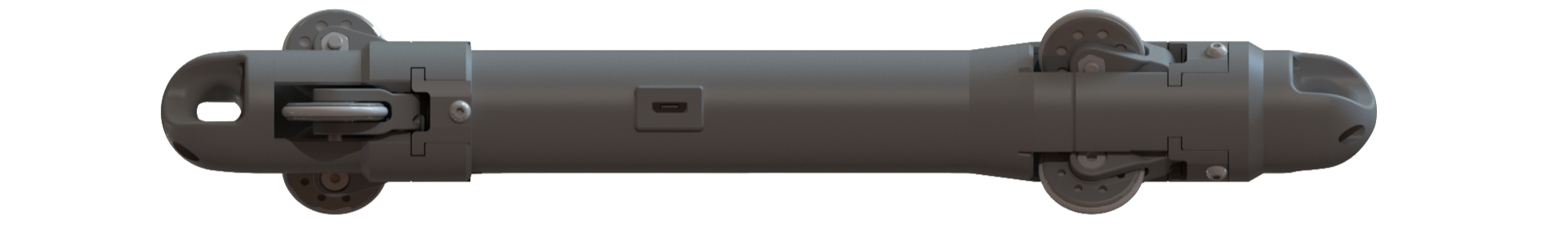

PLUM™ 2.0

MAP ACCURATELY AND QUICKLY

Dimension: Fits in a 2.0" pipe

The PLUM™ 2.0 and proprietary software allow for the creation of three-dimensional maps of underground systems and capture the X, Y, and Z coordinates.

The newly developed PLUM™ 2.0 utilizes secure cloud software that provides real-time data processing, automatic report generation, and archives of all related data. Our sensors and proprietary software are integrated into a platform that generates a report detailing the X, Y, and Z coordinates and potential bend radius issues, and provides source data that is communicated to the GIS platforms.

THE PROCESS

Set up is simple. The PLUM™ is designed by field engineers for operators in the field. The PLUM™ 2.0 can be either blown through a pipe or conduit or connected to pull tape that is then connected to a winch operated by a field technician. The device delivers real-time on-site data and measurements of the desired pipe or conduit. Data is anchored to GPS endpoints via a GPS device. Data is then transmitted from the device to a secure cloud platform. Proprietary data is protected with encryption at every step of the process.

A digital illustration of a worker in a safety vest using a tablet, with wires and a long cylindrical device, overlaid with data metrics including latitude, longitude, and altitude, and the text 'Real-Time Data + Measurements'.

A digital graphic showing a tracking map with start and end points, GPS coordinates, and technical specifications for a pipe. The background is purple, with white and yellow lines illustrating the pipe's path. The image also features a cloud icon with a circuit board design inside it and sensors.

Diagram showing data transfer via Bluetooth between a smartphone and a device, with details of a run including date, time, distance, and other stats, on a purple background.

Text overlay within a box that reads: 'Provides survey-grade accuracy'.

TECHNICAL CAPABILITIES

Text overlay within a box that reads: "Data can be collected over a single-pass through system".

Text overlay within a box that reads: "High-output port and wireless technology allow quick uploading to the cloud."

Text overlay within a box that talks: information about data output capability, including CSV, KML, JSON, and SHP files.

Text overlay within a box that reads: 'Device can withstand high pressure, water, and other elements'.

SHIPPED IN A CASE THAT INCLUDES:

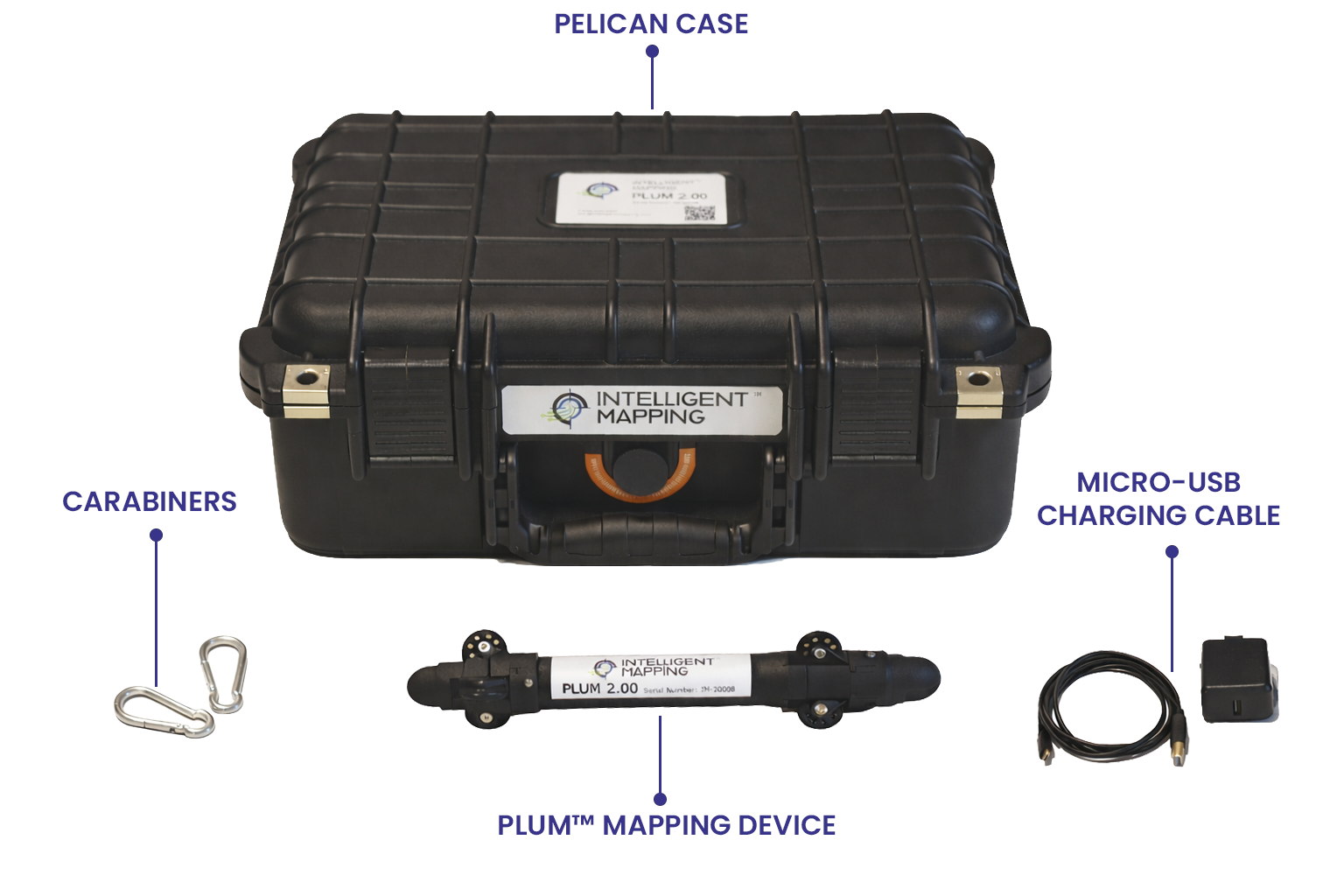

Black carrying case labeled 'Intelligent Mapping' with a handle, a set of carabiners to the left, a Plum mapping device below the case, and a micro-USB charging cable with a wall adapter to the right.
